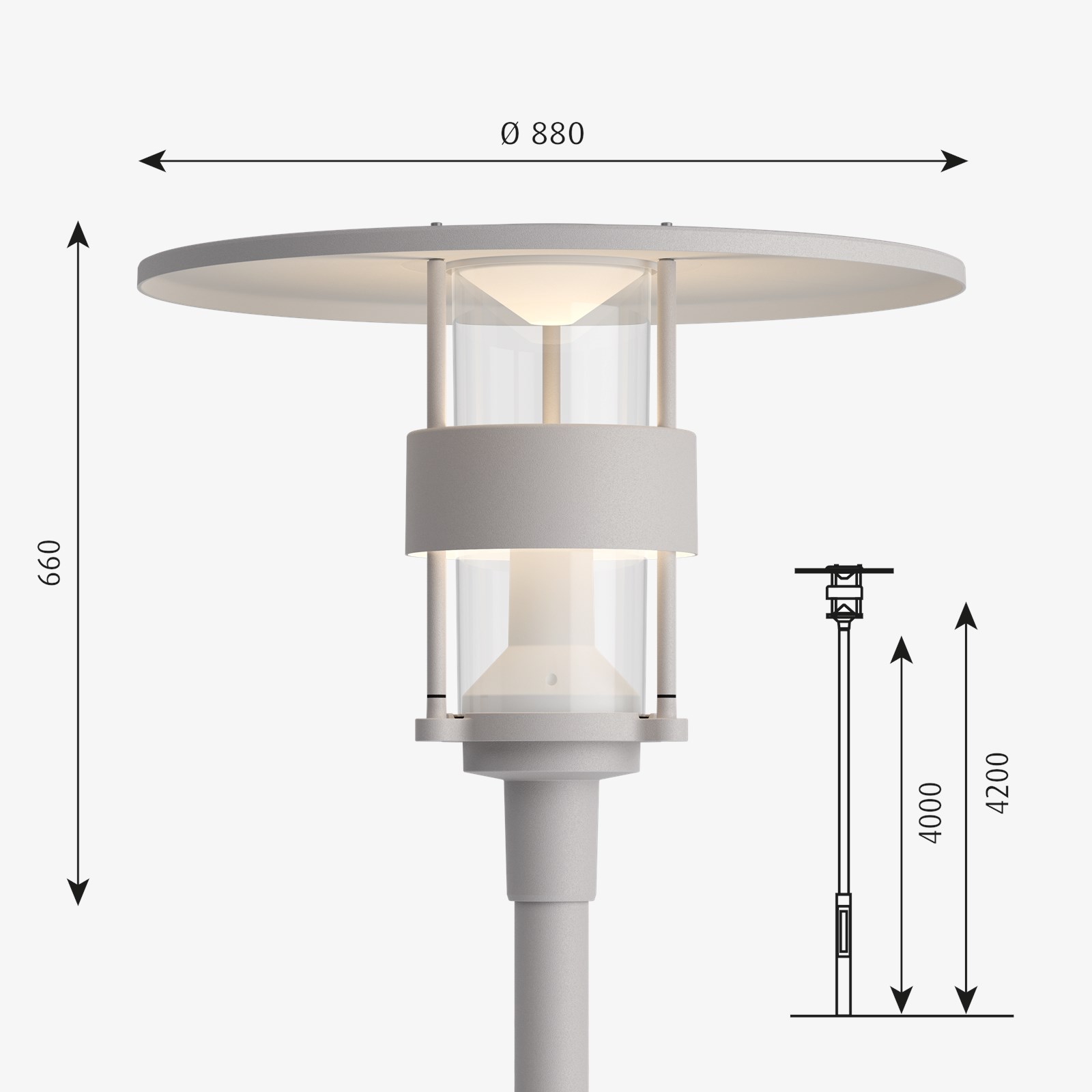

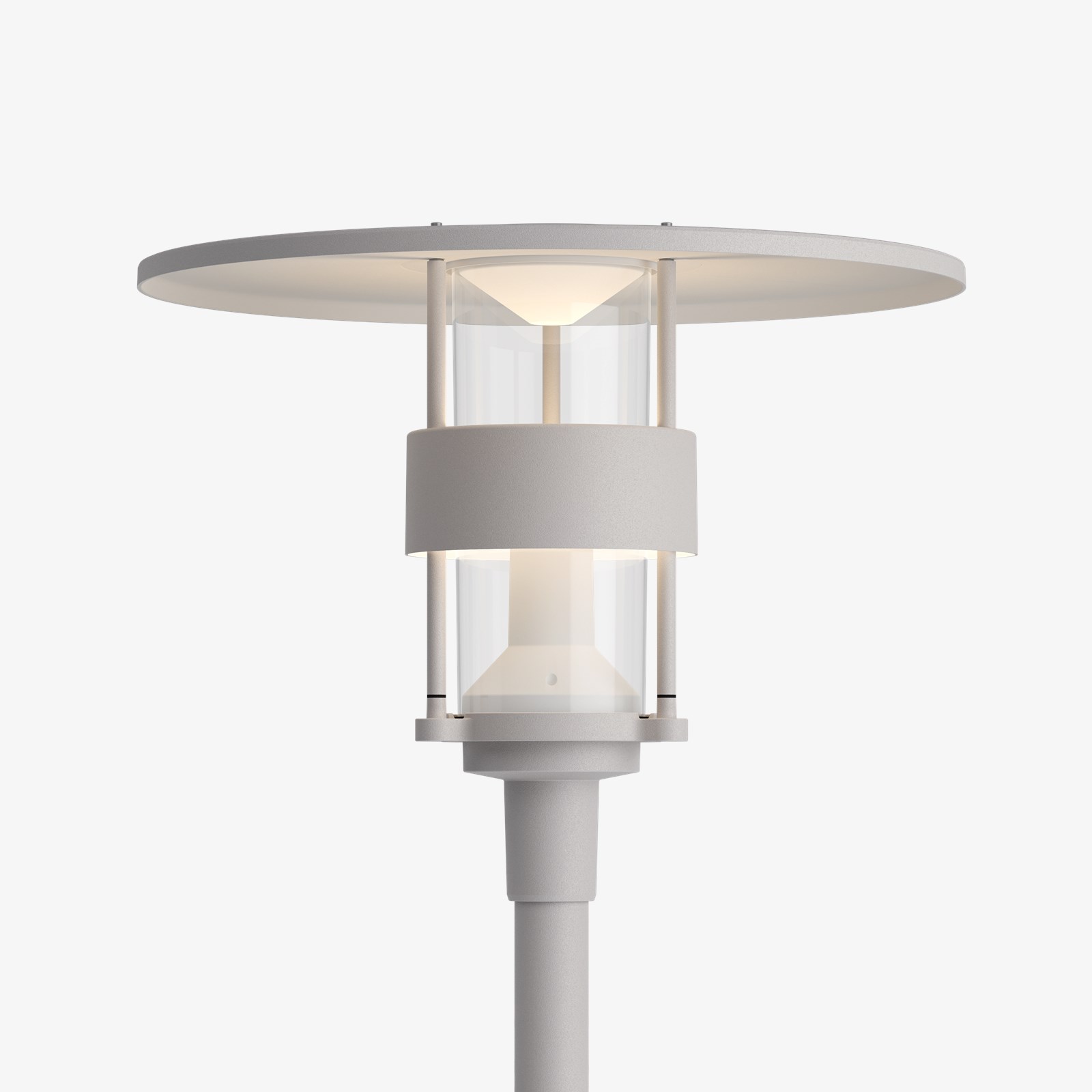

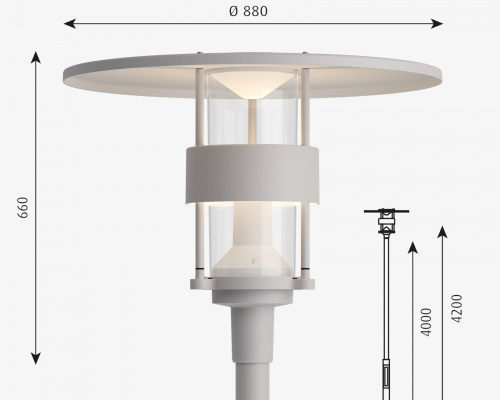

The design is based on an anti-glare ring, conical reflectors and a circular top shade, which serves as the primary reflector.
Terse design
Different colour variants.
Part of a product family.
The fixture emits symmetrical glare-free light directed downwards. The top shade directs the light downwards and prevents light from being emitted upwards from the post top. The white painted reflectors result in diffuse and comfortable light distribution. The reflector ring protects against direct glare. Two components of reflected light provides a high level of vertical light for people to feel safe and comfortable. Conical optical solution ensures a good balance between luminance and downward directed light. BUG U2 available (US). The fixture design is identifiable when the light is on as well as off. LED technology with more options of standard CCTs. Electronic dimmable driver. Smart city compatible solution available.
Material
EU: Aluminium coloured with textured surface, graphite with textured surface or grey, powder coated.
US: Aluminium coloured, grey, graphite grey, or white, powder coated. Top shade: High pressure moulded fiber glass, 3mm (0.12"") thick. Lower surfaces with high-reflectance white finish.
Enclosure: Injection moulded clear polycarbonate, U.V. stabilized, 3mm (0.12"") thick. Console & heat-sink. Die-cast aluminium, 3mm (0.12"") thick.
Struts: Stainless steel. Inside reflectors of white polycarbonate. Optical cone and diffuser polycarbonate. Driver inside the fixture head.
Weight
Min: 17.046 kg Max: 21.838 kg
Finish
Aluminium colour texture, Graphite grey texture, Grey
Other functions
LED retro-fit solution available.
