Two variants to provide either round symmetrical and asymmetrical light distribution
Driver and electronic control components in fixture head
LED board is replaceable
Easy to service
Light distributions: 1 round symmetrical, 1 asymmetrical
Lumen packages: 1500lm (low), 3000lm (high)
Colour temperature: 3000K, 4000K
Colour tolerance: 3 SDCM
Efficacy: min100lm/W out of the fixture on LI Version
CRI: 80
Lumen maintenance 100.000 hours L80B10
Luminous intensity class: G2
Surge protection: 5-10kA
Dimmable: Dali (EU), 1-10 (Japan) 0-10 (US)
Constant lumen output: Yes
Night time dimming: Yes
Dimmable by additional phase: No – option as PM version
Material
Down shade: Injection moulded clear polycarbonate. With gloving diffuse opal light side in rim
Upper Shade: Injection moulded Opal Impact PMMA. With gloving diffuse opal ambient light
Housing and heat sink fixture: Die-cast aluminium. Base: Die cast aluminium
Weight
Min: 7.683 kg Max: 8.086 kg

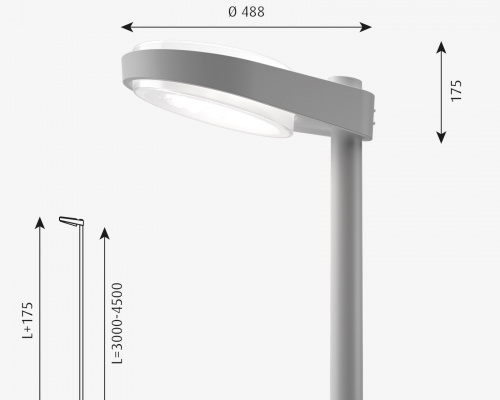

Dimensions
Finish
Aluminium colour texture
