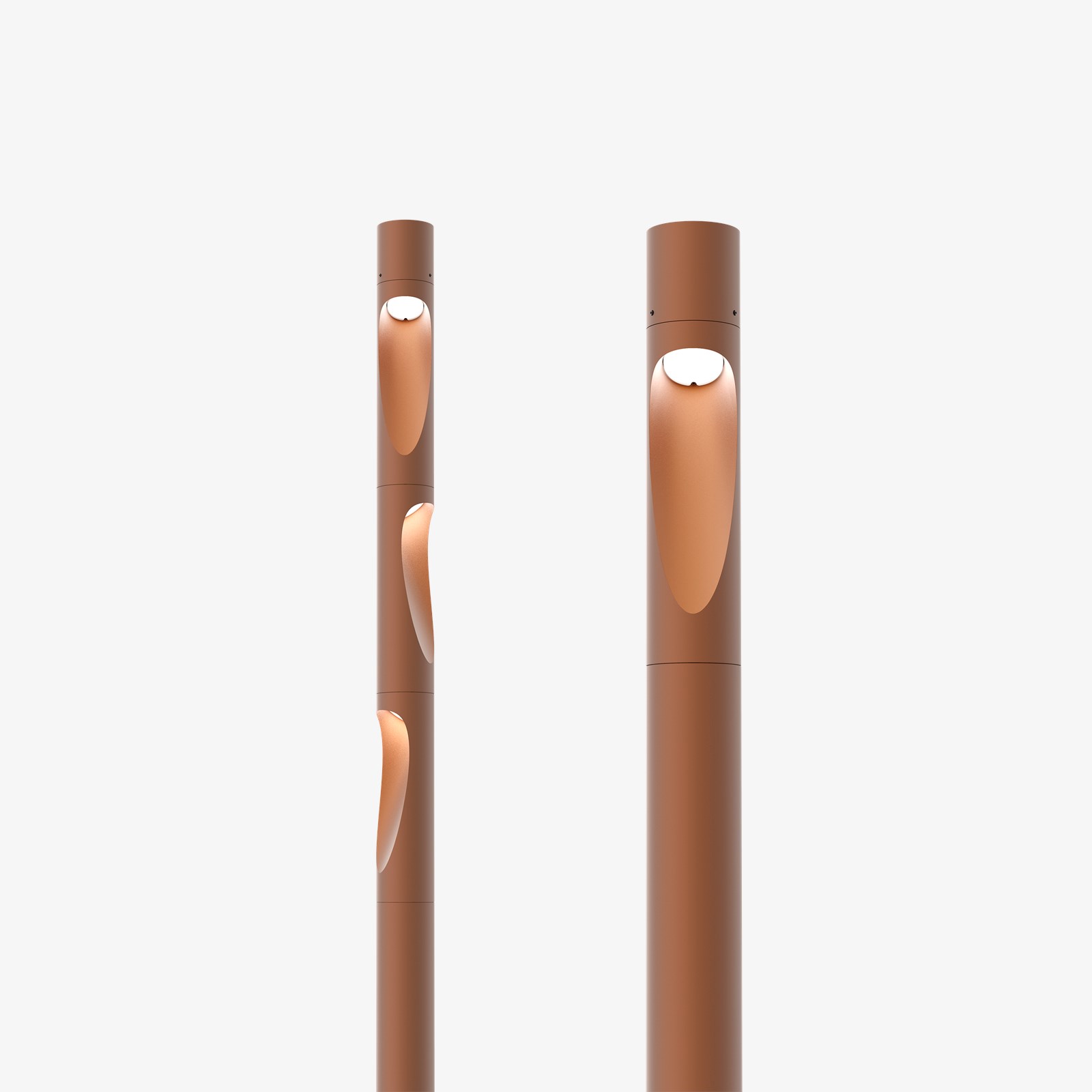

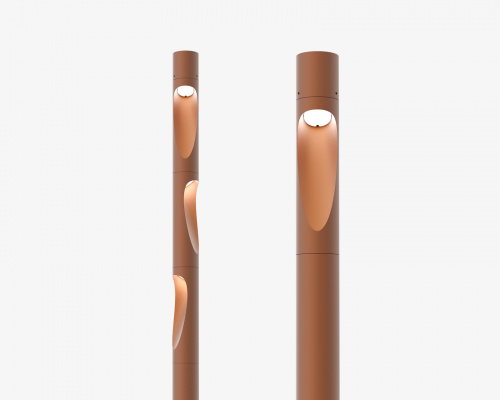

The fixture emits a glare-free downward directed light. The light source is hidden at the top, inside the asymmetric carving on the side of the post, where the gradient serves as a reflector that softens the light and forms a pleasant organic shape on the ground below. To optimise the flexibility in the lighting design, the illumination is adjustable with plus/minus 5° vertical and 360° horizontal, allowing for a more varied light distribution. The fixture is based on a modular principle and can in some configurations be built with up to four highly flexible light heads on one pole.
Information
Driver integrated in each head. Surge protection device (SPD) not included. LED replacement kit available. Dimming options: DALI, CLO, and night time dimming (default setting: 50% power in 8 hours). All variants available with Zhaga socket for Smart City compatibility. Including CLO and night time dimming options. Please contact Louis Poulsen for more info about supported Light Management Systems. Honeycombe available as an accessory which can be installed subsequently. Please note, Flindt Plaza is based on a modular principle. A complete fixture is built up by single item numbers and consists of a pole, a top, an installation cable plus a number of light heads. (Maximum of 5 units on a pole. A unit can also be a spacer).
Light source
Light source LED 2700K 33W
Lumen: 2608
Finish
Aluminium coloured or corten coloured. Textured surface, powder coated.
Materials
Top: Cast aluminium. Head: Cast aluminium. Post: Extruded aluminium. Base plate: Cast aluminium. Diffuser: Polycarbonate.

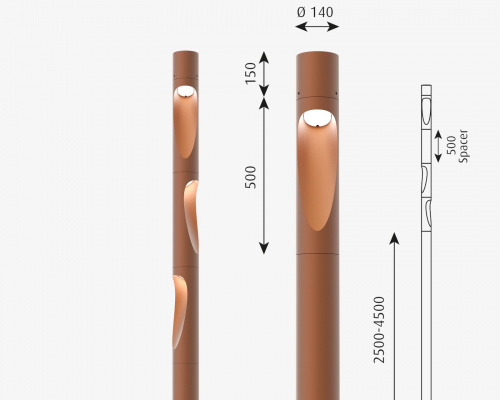

Sizes and weights
Width x Height x Length (mm)
Light module: 140 x 500 x 140 Max 6.9 kg
Pole: 140 x 2500 x 140 Max 21.0 kg
Pole: 140 x 3500 x 140 Max 27.0 kg
Pole: 140 x 4500 x 140 Max 35.0 kg
Top: 140 x 150 x 140 Max 1.6 kg
Spacer: 140 x 500 x 140 Max 4.5 kg
