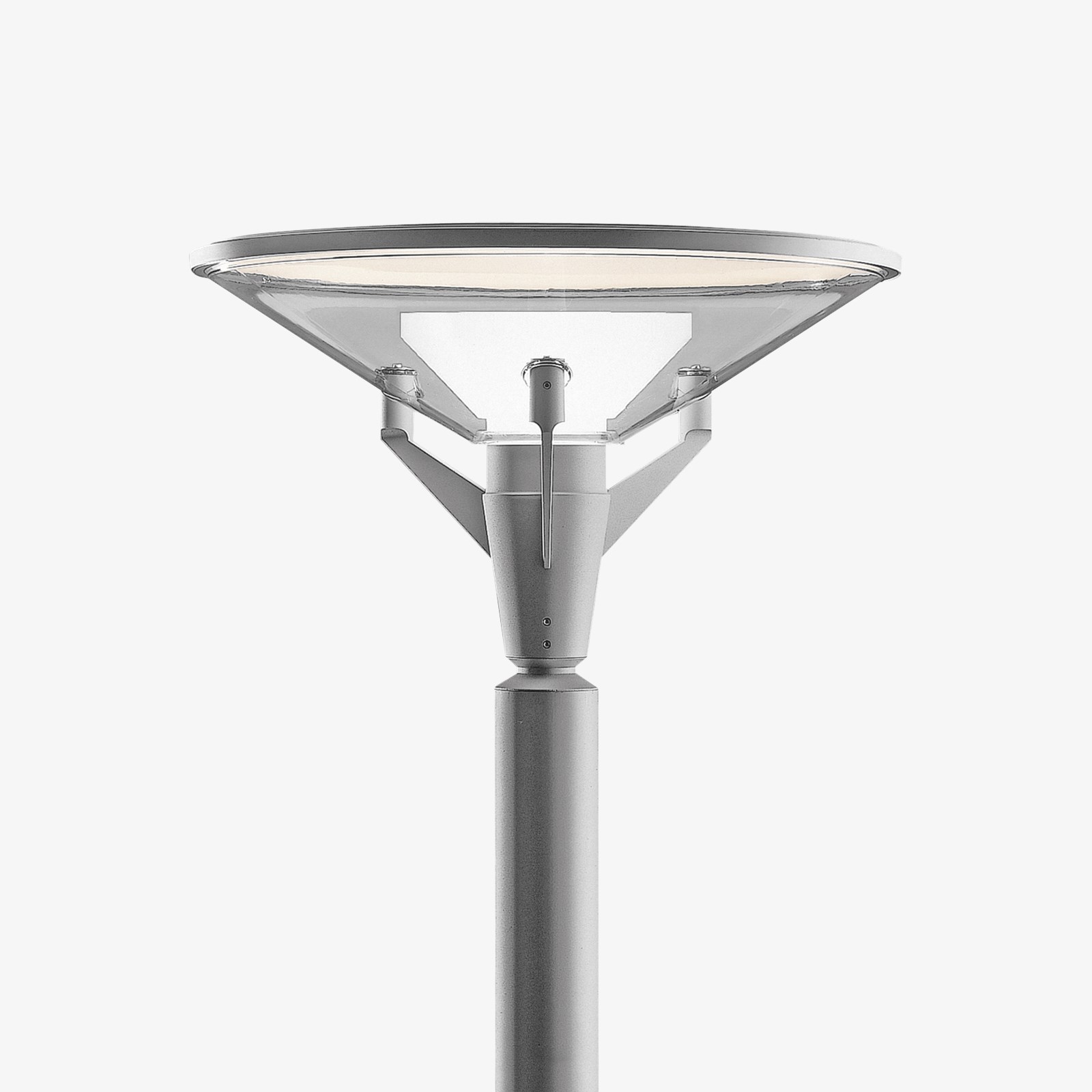

Cone-shaped post fixture carried on a console with three arms
Opal diffuser inside a clear enclosure.
Terse design suitable for both modern and classic design.
Different colour variants.
The console serves as heat sink.
A special system makes it easy to tilt the light head for access to the lamp.
Part of a family.
A Retro Fit Kit is available for updating conventional Kipp variants to become a LED variant.
The fixture emits symmetrical glare-free light directed downwards and outwards.
The angle of the internal diffuser, together with the slightly curved and white painted top shade, ensures a wide band of glare-free, uniform lighting.
Provides a high level of vertical light for people to feel safe and comfortable.
Functional and pleasant lighting comfort.
The fixture design is identifiable when the light is on.
LED technology with more options of standard CCTs.
Electronic dimmable driver, night time dimming and control by additional phase
Material
EU: Aluminium coloured with textured surface or graphite with textured surface powder coated.
US: Aluminium coloured or black powder coated.
Top shade: Injection moulded U.V. and weather resistant ASA, 3mm (0.12") thick.
LED enclosure of sandblasted glass, 3mm (.12") thick, for improving uniformity of the light on the internal diffuser, sealed with silicone gasket.
Internal conical diffuser: Injected moulded opal acrylic, 2mm (0.08") thick.
Enclosure: Injection moulded U.V. stabilized clear polycarbonate, 4mm (0.16") thick.
Console and supporting arms: Die-cast aluminium. LED variants use unibody frame that transfers heat from LED to atmosphere.
Weight
Min: 10.069 kg Max: 9.208 kg

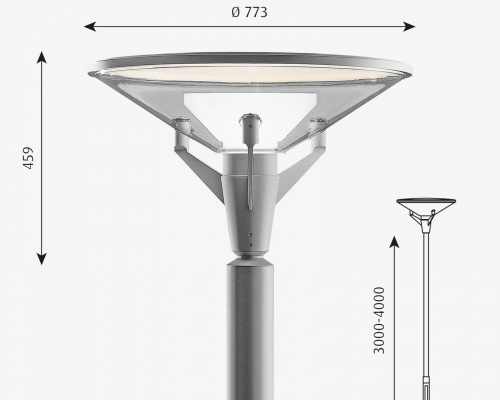

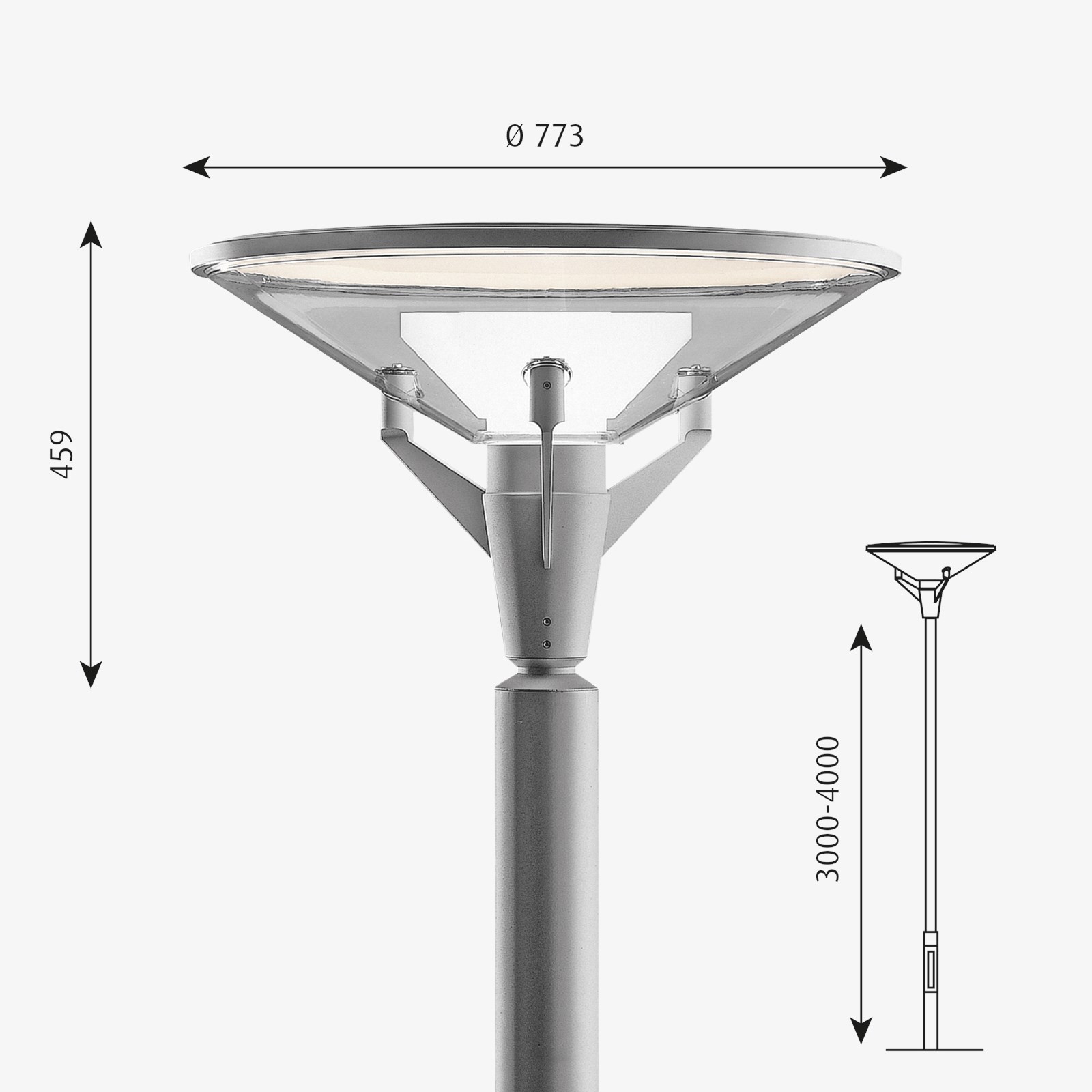

Dimensions
Finish
Aluminium colour texture, Graphite grey
Other functions
Voltage
