The light is directed 100% downwards and the shade has a matt white painted interior emitting a soft, diffused, comfortable light.
Toldbod 290 Post was launched in 1982, with a design based on the PH Ellipse reflector. The fixture is very sturdy and discreet. The design is very precise, making the light suitable for a variety of architectural environments.
Fixture heads without pole are available for Ø 48mm or Ø 60mm poles. For fixture complete with Ø 60mm pole: choose ”for Ø 48mm pole” (pole stub); outer pole dimension is Ø 60mm. Please note that for the aluminium coloured version both the pole top, arm and the pole itself are galvanised. Galvanised surfaces will oxidise and form a thin zinc-oxide layer on the surface over time. This can result in an inconsistent surface finish during oxidation. This process might have begun already during stocking/transportation. The formed zinc-oxide layer protects the galvanizing against additional corrosion. All variants available with Zhaga socket for Smart City compatibility. Including CLO and night time dimming options. LED Upgrade Kit available for updating conventional variants to LED variants.
Environmental Product Specification
This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused.
Finish
Aluminium coloured with textured surface or black with textured surface, powder coated.
Class
Ingress protection IP65. Electric shock protection I w. ground, II w/o ground. IK08.
Materials
Fixture head: Die cast aluminium. Shield: Injection moulded clear polycarbonate. Pole top: Galvanized, steel.
Light source
Light source LED 3000K 20W
Lumen: 1928
Mounting
Pole dimension: Ø 48mm or Ø 60mm. Installation cable: 3,5m 2x1mm² (-DPC Cl.II), 3,5m 3x1mm² (-DPC Cl.I), 3,5m 4x1mm² (-DAC Cl.II), 3,5m 5x1mm² (-DAC Cl.I). Driver: In fixture head.
Sizes and weights

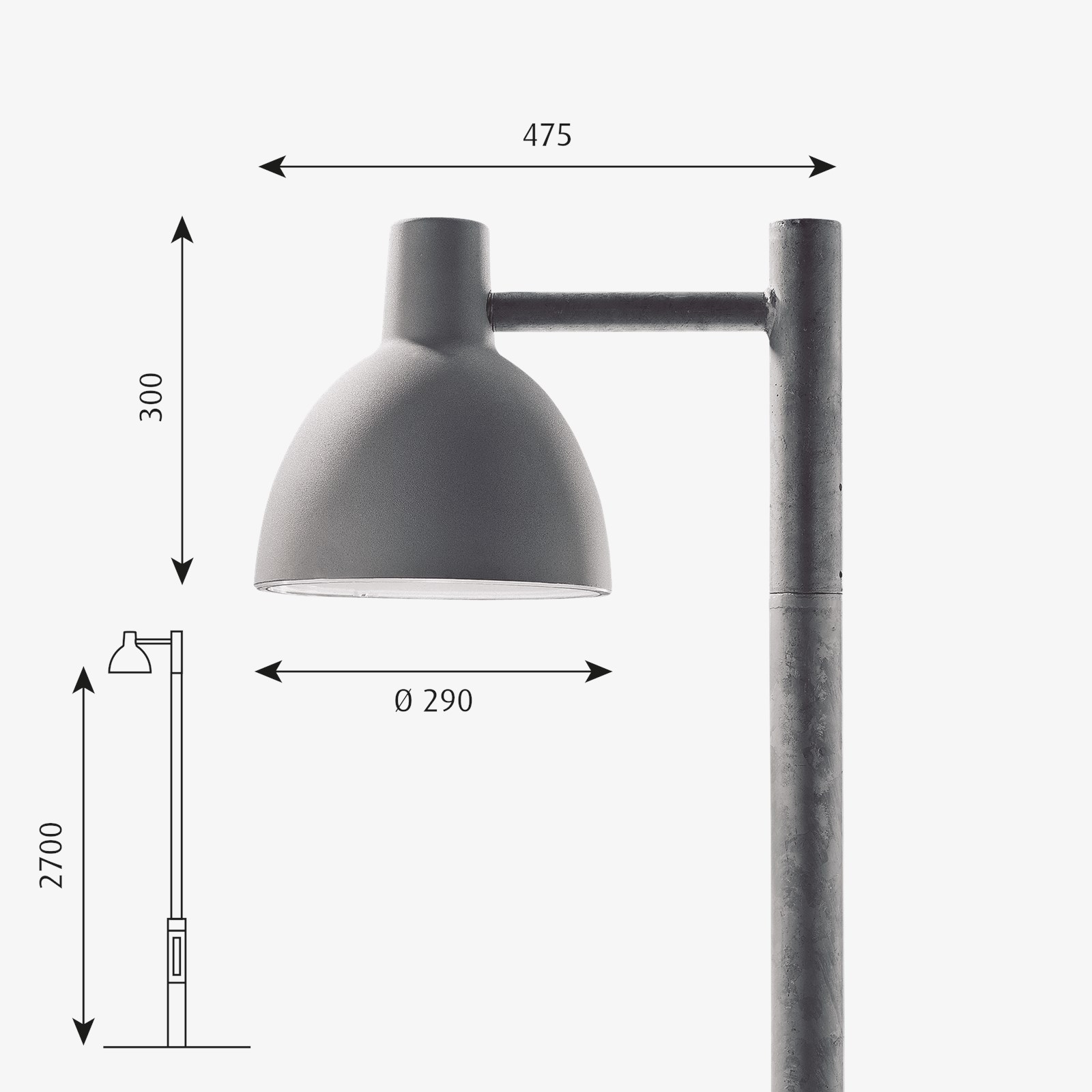

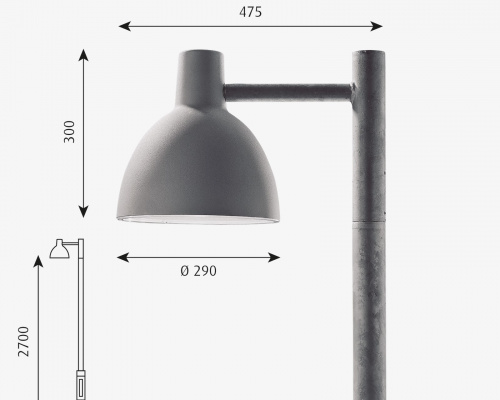

Width x Height x Length (mm)
290 x 300 x 475 Max 10.7 kg
