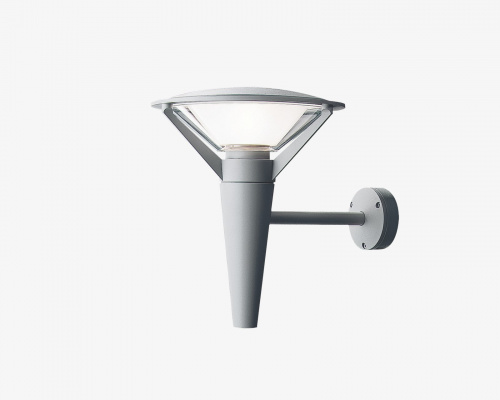

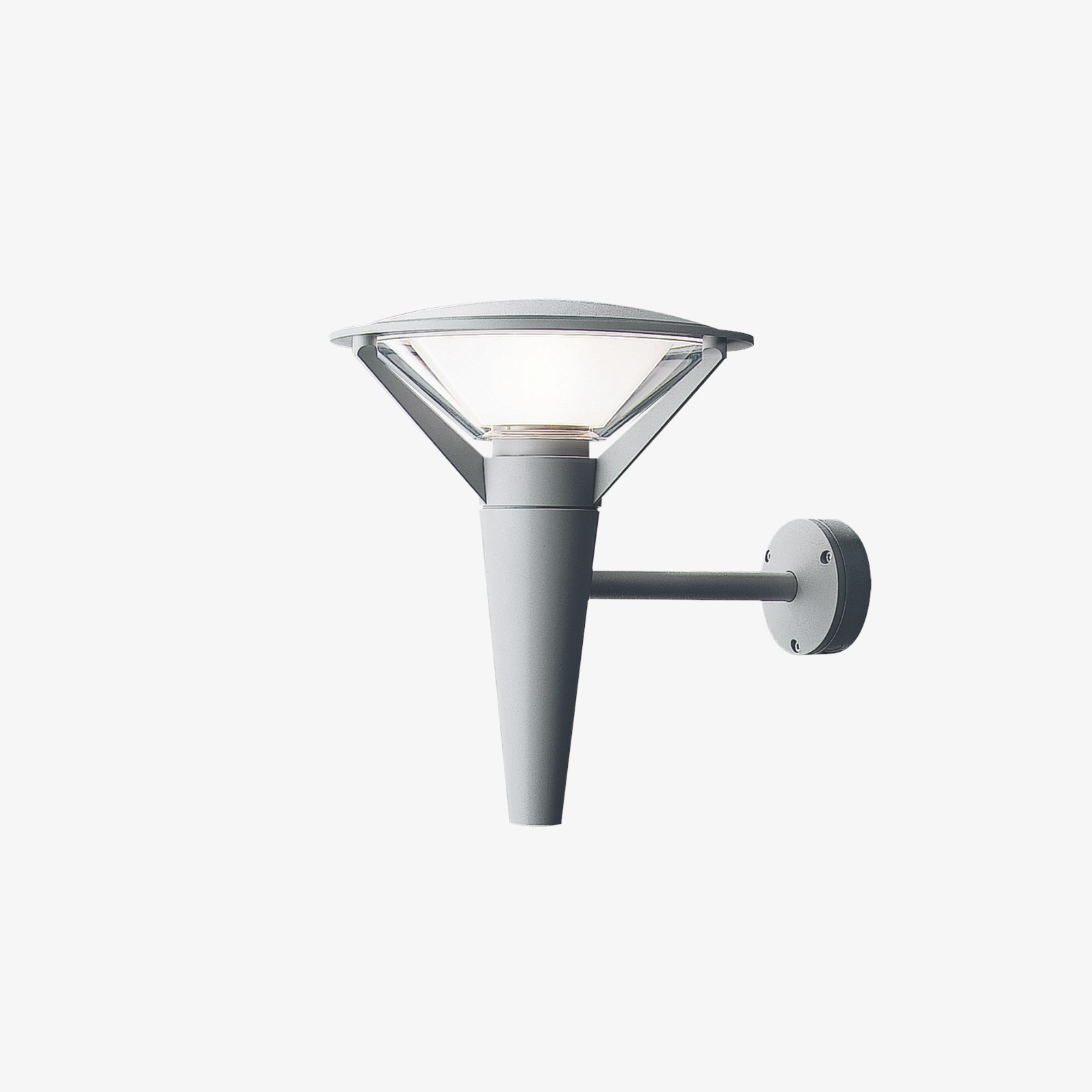

Kipp Wall Light


Features

The fixture emits symmetrical light directed downward.  The relation between the slightly curved top shade and the angle of the inner opal diffuser ensures a wide non glare light distribution.

Specifications

Environmental Product Specification
This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused.

Information
Delivered with integrated Surge Protection Devicee (SPD). Driver located in the conical fixture housing. The innovation of the LED technology is constant. The specifications mentioned are based on present technology.
Mounting Terminal block: 1x3x2.5mm². Cable entries: 2x rear and 2x bottom entries, Ø 20mm. Looping: Approved, max. 3x1,5mm².

Finish
Aluminium coloured with textured surface or graphite grey, powder coated.

Materials
Diffuser: Injection moulded white opal acrylic. Top shade: Die cast aluminium. Enclosure: Injection moulded clear
polycarbonate. Frame: Die cast aluminium. Wall box: Die cast aluminium. Arm: Extruded aluminium.

Sizes and weights

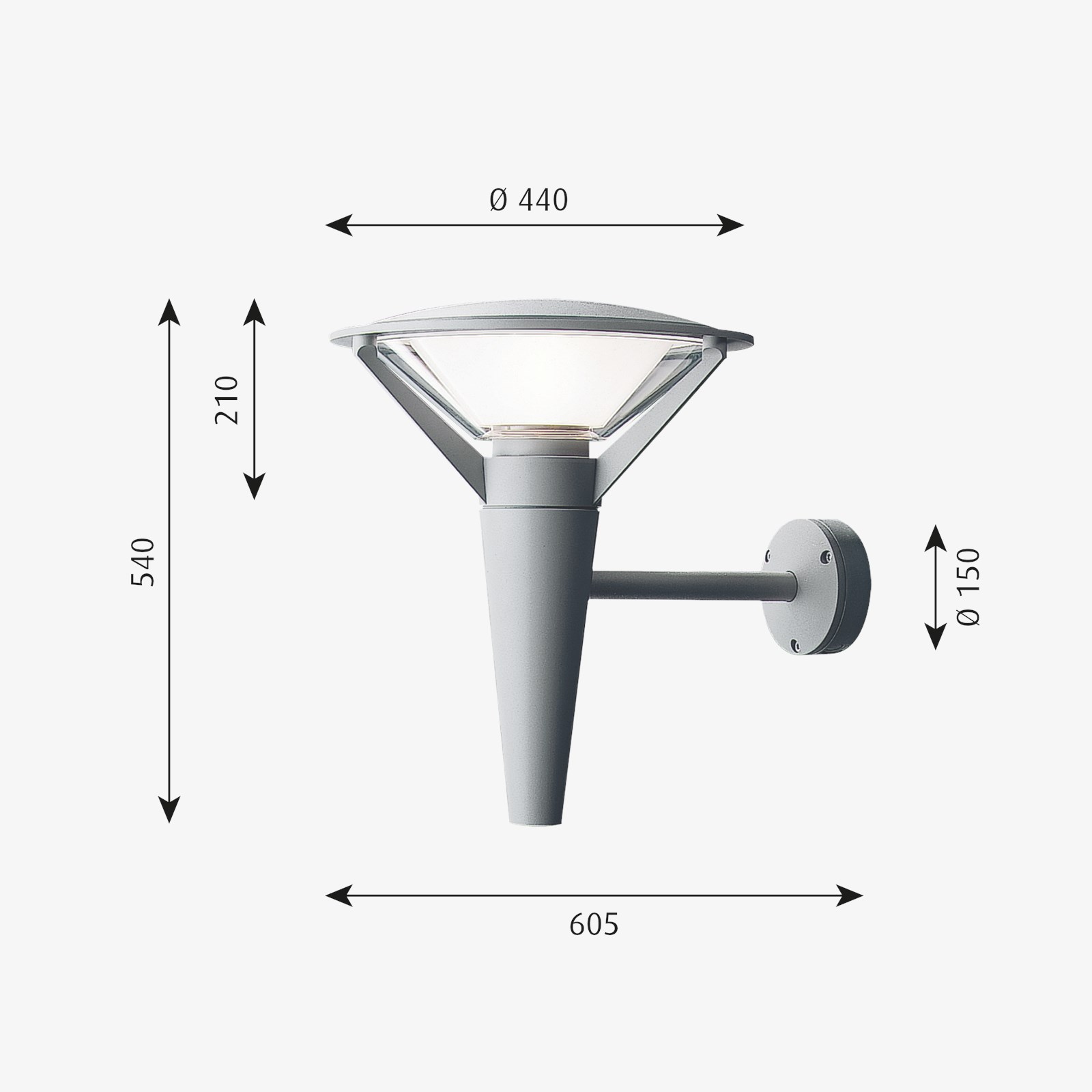

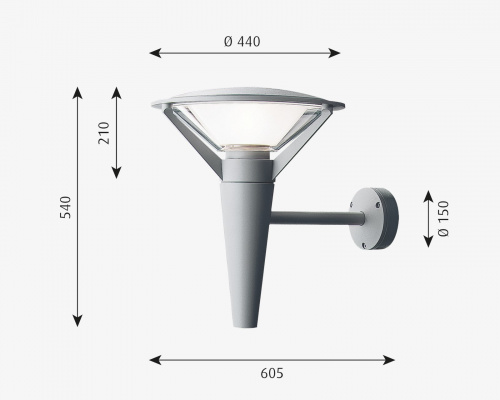

Width x Height x Length (mm) | 440 x 540 x 605 Max 7.3 kg

Class
Ingress protection IP55. Electric shock protection I w. ground. IK10.

Light source
LED 3000K 28W
Lumen: 1454

Information
Delivered with integrated Surge Protection Devicee (SPD). Driver located in the conical fixture housing. The innovation of the LED technology is constant. The specifications mentioned are based on present technology.
